Dual analog/digital interface model best suited for imaging modalities such as CT and MR. The built-in calibration function enables DICOM GSDF compliant grayscale presentation. |
Features
|
|
Calibration capability for DICOM Part 14 compliant grayscale presentation
Calibrates luminance and gamma to enable smooth grayscale display that is faithful to DICOM GSDF.
Built-in 10bit LUT (Look-up Table) to reproduce beautiful grayscale
The built-in LUT selects the most appropriate 256 shades of gray (8bit) out of 1021 shades (10bit) to realize finer and smoother grayscale.
Luminance stabilizing system λ-Sentinel for stable display of medical images
Automatically corrects and luminance fluctuation due to startup drift, temerature change, and aging to provide stable luminance.
Dual Interface
ME181L provides for a digital interface and an analog interface.
Pairing service to match colors of two displays (Optional)
Worldwide medical safety standards
This display is certified under various medical safety standards that are much more demanding than those for general-purpose IT equipment.
About medical safety standards
Specifications & Dimensions
|
|
Specifications
| Model Name | ME181L | |
|---|---|---|
| LCD | Technology | 18.1-inch, Monochrome, TFT active matrix |
| Display Area | 359.0mm x 287.2mm | |
| Pixel Pitch | 0.2805mm x 0.2805mm | |
| Visual Performance | Contrast Ratio | 600:1 (typ) |
| Maximum Luminance | 700cd/m² (typ), (factory-set to 410cd/m²) | |
| Viewing Angle | 170° horizontal and vertical (typ) | |
| Available Resolution | 640 x 480 (VGA) to 1280 x 1024 (SXGA) (Analog/Digital) | |
| Grayscale | 256 shades out of 1021 shades of gray | |
| Input Signal | Input Sync Signal | Digital DVI / Analog RGB |
| Plug and Play | DDC2B compliant | |
| Input Power Supply | Input | AC Adapter 100V-240V (-10%, +6%) 50/60Hz |
| Maximum Power Consumption | 50W (typ), (with power management feature) | |
| Features | Calibration Control | Luminance, Gamma (A calibration kit is required.) |
| USB Hub | USB Rev. 1.1 compliant, 1 bus-powered USB upstream connector, 2 USB downstream connectors | |
| Standards | Medical Safety | UL2601-1, CSA C22.2 No.601.1, MDD/CE, TüV/GM, FDA 510(k) |
| EMI | FCC-B, VCCI-B, MIC, CCC, BSMI | |
| Physical Characteristics | Dimensions (WxHxD) | Landscape: 432mm x 434/523mm x 220mm Portrait: 353mm x 474/563mm x 220mm |
| Weight | Approx. 10kg (Approx. 5.8kg without tilt stand) | |
| Tilt Stand | Tilt, swivel, landscape/portrait rotation | |
| Mount | 100mm VESA compliant | |
| Security Slot | Antitheft security slot (tilt stand) | |
| Accessories | AC adapter, 3P power cord, DVI cable, VGA cable, Serial cable, USB cable, User manual | |

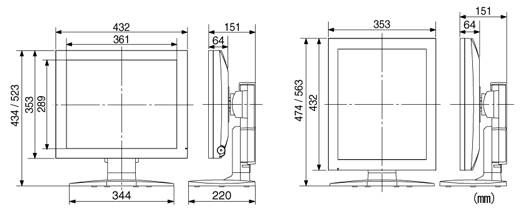

Dimensions
 |
